The Bergamont Helix 10 Belt Hybrid Bike features an ultra lightweight aluminum frame, Shimano Nexus 8-speed internal gear hub, and low-maintenance belt drive.
The Bergamont Helix 10 Belt Hybrid Bike features an ultra lightweight aluminum frame, Shimano Nexus 8-speed internal gear hub, and low-maintenance belt drive.
Scott

Bergamont Helix 10 Belt Slope Hybrid Bike in Dusky Purple

€3,799.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

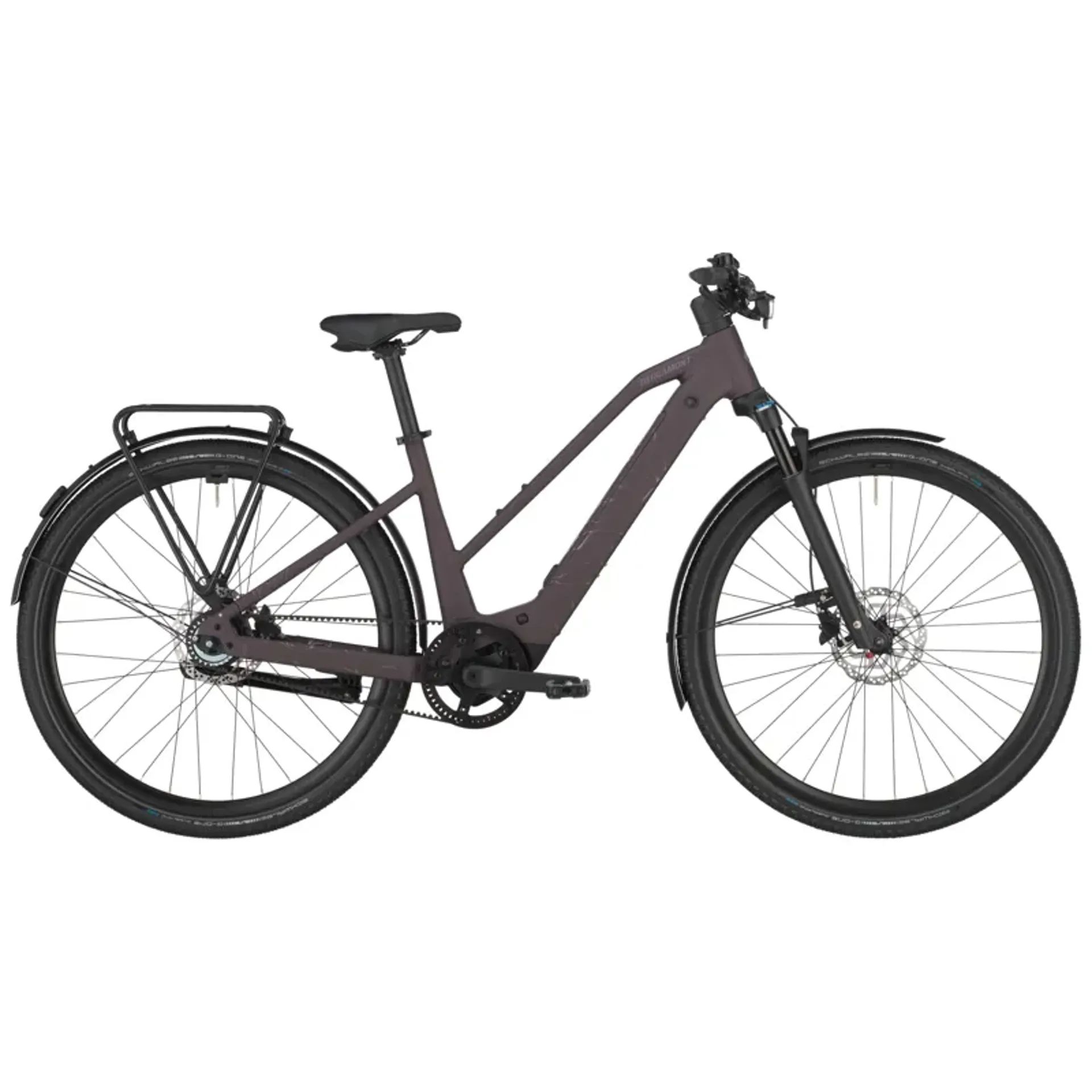

Bergamont Helix 10 Belt Slope Hybrid Bike in Dusky Purple

Season:2026

Brand:Scott

Code:423519duskyPUR

The Bergamont Helix 10 Belt Hybrid Bike features an ultra lightweight aluminum frame and a low-maintenance belt drive system, making it ideal for versatile riding.

Features:

  • Ultra lightweight aluminum frame
  • Suntour suspension fork with 75 mm travel
  • Shimano Nexus 8-speed internal gear hub and low-maintenance belt drive
  • Bosch Smart System with compact Performance Line SX motor
  • Shimano hydraulic disc brakes
  • 28" Schwalbe G-One Overland 365 tires
  • LED lighting system front and rear
Technical Information
  • Frame
    28", ultra lite AL-6061 tubing, CompactTube battery
  • Fork
    Suntour NRX32-E-Air LOR DS, 75 mm, 15x100 mm axle
  • Drive unit
    Bosch Performance Line SX, 250 W, 36 V, max. 25 km/h
  • Battery
    Bosch CompactTube, 36 V Li Ion, 400 Wh
  • Display
    Bosch Purion 200
  • Charger
    Bosch Compact Charger, 2A
  • Shifters
    Shimano Alfine, SL-S503, 8-speed, rapidfire plus-shifter
  • Crankset
    FSA CK-220, 170 mm, belt, 52t
  • BB-Set
    Bosch, Isis
  • Chain
    Gates CDC Carbon Drive Belt, Center-Track
  • Cassette
    Gates CDC, 26t
  • Brake levers
    Shimano BL-MT200, hydraulic disc brake
  • Brakes
    Shimano BR-MT200, hydraulic disc brake
  • Rotor
    Shimano SM-RT10, 180 mm
  • Grips
    Syncros Urban, Ergo, double density, lock-on
  • Handlebar
    Syncros Urban Combo, width: 680 mm
  • H'stem
    Syncros Urban Combo, length: 70 mm
  • Seatpost
    BGM Pro
  • Seat
    Syncros Capilano Trekking Memory Foam
  • Headset
    Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
  • Front hub
    Shimano HB-TC500, centerlock, disc, 15x100 mm axle
  • Rear hub
    Shimano Nexus, SG-C6001-8, freehub, centerlock, disc
  • Spokes
    stainless, black
  • Rims
    BGM Pro X15, disc, eyelets
  • Front tire
    Schwalbe G-One Overland 365, Performance, RaceGuard, reflective stripe, 50-622Tube: Schwalbe SV19B Light
  • Rear tire
    Schwalbe G-One Overland 365, Performance, RaceGuard, reflective stripe, 50-622Tube: Schwalbe SV19B Light
  • Lights
    Front: B&M Briq-S, 60 Lux, LEDRear: Supernova, LED
  • Rack
    Racktime / BGM Allroad carrier, Snapit 2.0 System
  • Fender
    Curana C-Lite, with stainless stays
  • Pedals
    Marwi SP-827, sandblock
  • Accessories
    Kickstand: Passage
  • Approx weight in KG
    21,8
  • Max. system weight
    130,0 kg (The overall weight includes the bike, the rider, the equipment and possible additional luggage.)
  • Seatpost diameter
    31,6 mm
  • Headset dimension
    ZS56/ZS56
  • BB standard
    Bosch
  • Max. rotor size
    180 mm
  • Geometry S (A)
    400 mm (15,7 in)
  • Geometry S (B)
    575 mm (22,6 in)
  • Geometry S (B*)
    580 mm (22,8 in)
  • Geometry S (C)
    475 mm (18,7 in)
  • Geometry S (D)
    110 mm (4,3 in)
  • Geometry S (E)
    68,0 °
  • Geometry S (F)
    76,2 °
  • Geometry S (H)
    55 mm (2,2 in)
  • Geometry S (K)
    1.161 mm (45,7 in)
  • Geometry S (L)
    739 mm (29,1 in)
  • Geometry S (M)
    600 mm (23,6 in)
  • Geometry S (N)
    419 mm (16,5 in)
  • Geometry S (Fork length)
    493 mm (19,4 in)
  • Geometry S (Fork rake)
    46 mm (1,8 in)
  • Geometry M (A)
    440 mm (17,3 in)
  • Geometry M (B)
    590 mm (23,2 in)
  • Geometry M (B*)
    600 mm (23,6 in)
  • Geometry M (C)
    475 mm (18,7 in)
  • Geometry M (D)
    120 mm (4,7 in)
  • Geometry M (E)
    68,0 °
  • Geometry M (F)
    76,2 °
  • Geometry M (H)
    55 mm (2,2 in)
  • Geometry M (K)
    1.182 mm (46,5 in)
  • Geometry M (L)
    757 mm (29,8 in)
  • Geometry M (M)
    609 mm (24,0 in)
  • Geometry M (N)
    437 mm (17,2 in)
  • Geometry M (Fork length)
    493 mm (19,4 in)
  • Geometry M (Fork rake)
    46 mm (1,8 in)
  • Geometry L (A)
    490 mm (19,3 in)
  • Geometry L (B)
    604 mm (23,8 in)
  • Geometry L (B*)
    620 mm (24,4 in)
  • Geometry L (C)
    475 mm (18,7 in)
  • Geometry L (D)
    130 mm (5,1 in)
  • Geometry L (E)
    68,0 °
  • Geometry L (F)
    76,2 °
  • Geometry L (H)
    55 mm (2,2 in)
  • Geometry L (K)
    1.203 mm (47,4 in)
  • Geometry L (L)
    787 mm (31,0 in)
  • Geometry L (M)
    618 mm (24,3 in)
  • Geometry L (N)
    454 mm (17,9 in)
  • Geometry L (Fork length)
    493 mm (19,4 in)
  • Geometry L (Fork rake)
    46 mm (1,8 in)
  • Geometry XL (A)
    540 mm (21,3 in)
  • Geometry XL (B)
    621 mm (24,4 in)
  • Geometry XL (B*)
    640 mm (25,2 in)
  • Geometry XL (C)
    475 mm (18,7 in)
  • Geometry XL (D)
    150 mm (5,9 in)
  • Geometry XL (E)
    68,0 °
  • Geometry XL (F)
    76,2 °
  • Geometry XL (H)
    55 mm (2,2 in)
  • Geometry XL (K)
    1.226 mm (48,3 in)
  • Geometry XL (L)
    824 mm (32,4 in)
  • Geometry XL (M)
    637 mm (25,1 in)
  • Geometry XL (N)
    469 mm (18,5 in)
  • Geometry XL (Fork length)
    493 mm (19,4 in)
  • Geometry XL (Fork rake)
    46 mm (1,8 in)
